Twin Direct-Drive Motors
2 × 125 kW medium-speed motors (140 kW peak) turn fixed-pitch propellers with no gearbox — fewer moving parts, less noise, less maintenance.
OBLUE International presents
E60
Carbon Fiber Electric Catamaran
18.50 mLength overall
16 knMax speed
720 kWhLFP battery
2.7 hFast charge
0Emissions
The Vessel
Built for the harbours of the
zero-emission era

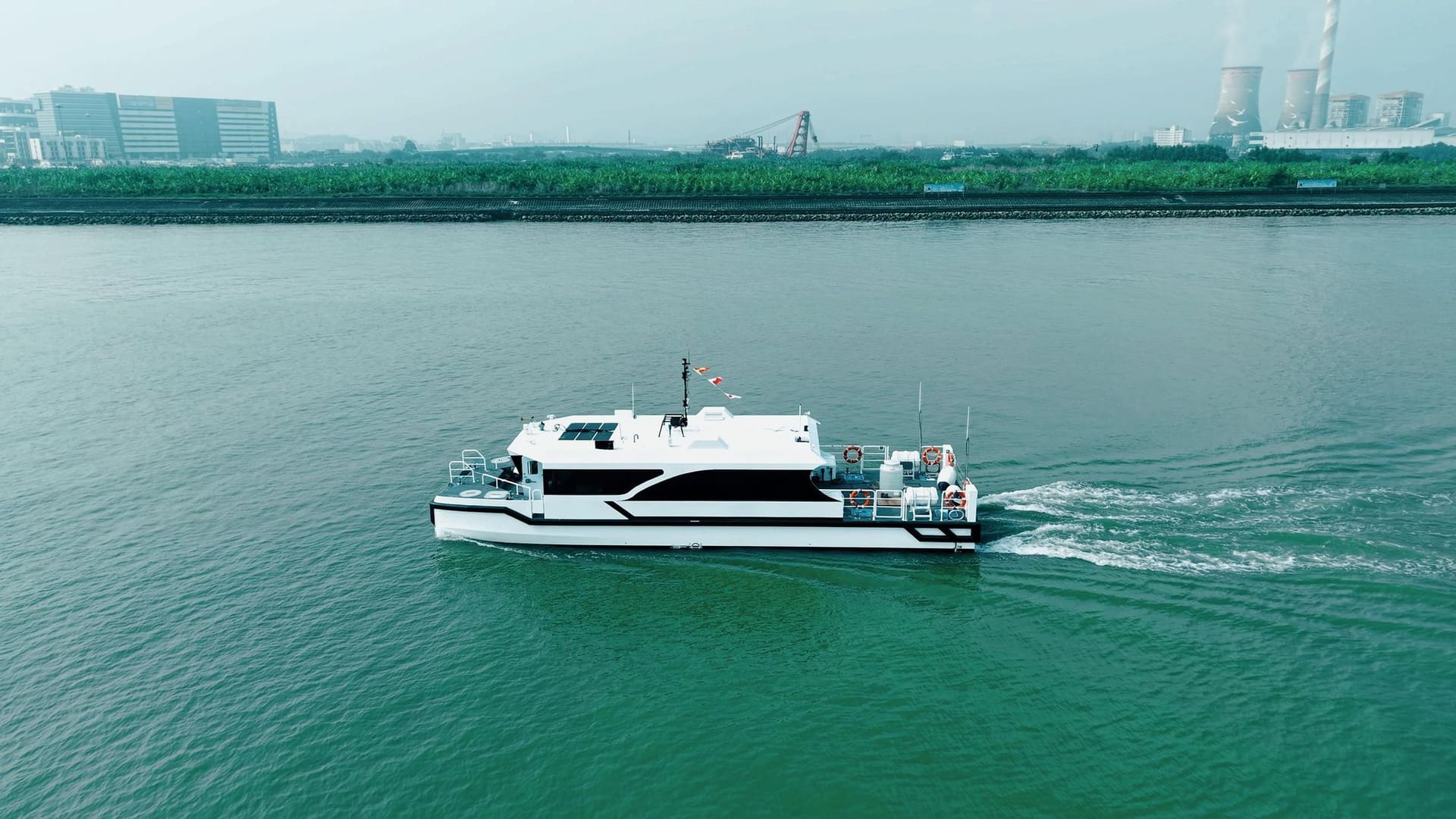

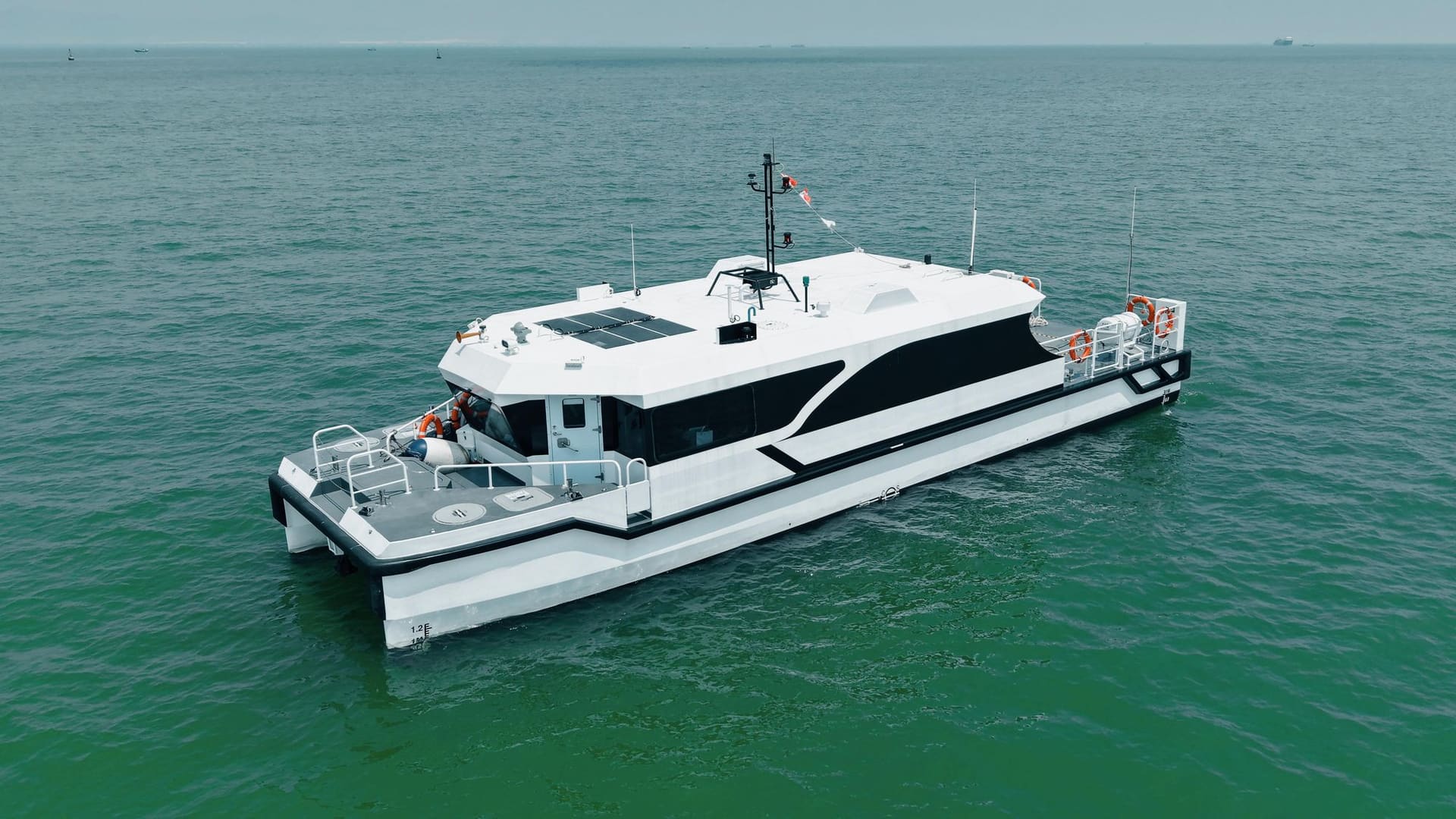

The OBLUE E60 is an 18.5-metre all-electric crew and utility catamaran in full carbon fiber, engineered for the daily grind of port operations — delivered, classed and proven at sea.
Slim demi-hulls cut drag and wake; twin direct-drive motors and a 720 kWh marine LFP battery move 12 passengers, 5 crew and 2 tonnes of cargo in near silence — with zero local emissions, classed by CCS for coastal service.
- Carbon fiber sandwich composite hull
- CCS class — HSC Traffic Boat notation, coastal service
- 12 passengers + 5 crew + 2,000 kg cargo deck
- First of class delivered June 2026
“Zero emissions.
Zero compromise.”
Electric Drive
Power, without the noise
Redundant by Design
Two independent DC switchboards and twin AC boards: if one bus fails, the other keeps both propellers turning at safe speed. One-key start, full remote monitoring over 4G.
Charged Between Shifts

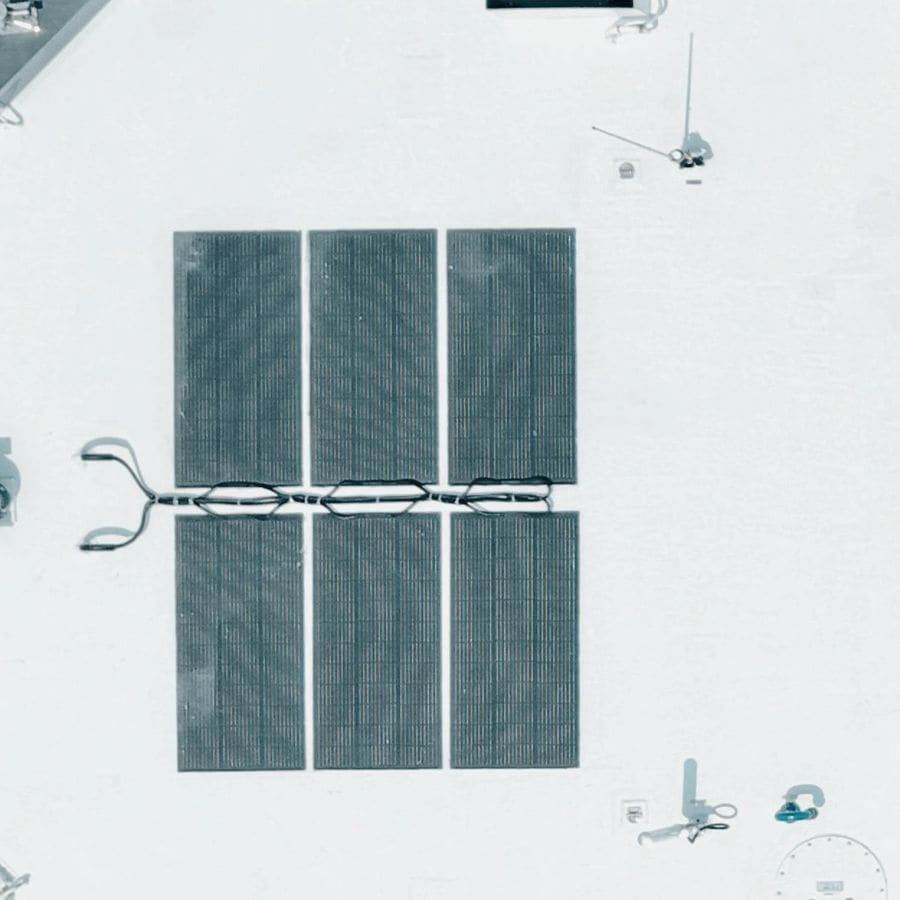

Dual CCS2 guns at up to 2 × 120 kW refill the pack in 2.7 hours; shore power covers the night and a rooftop solar array keeps lighting and UPS loads off the traction bank.
Safety Beyond Class
FM200 fire suppression, explosion-proof gas and temperature sensors in the battery spaces, fire-retardant coatings below the waterline — CCS battery-power notation.
720 kWhLFP traction battery — CALB marine cells
2 × 125 kWdirect-drive motors, 140 kW peak each
2.7 hfull charge at 2 × 120 kW DC
563 Vtwin redundant DC buses
Performance
Speed or range — dial it in
Sea-trial data from the delivered vessel: choose a speed, read the true power draw and range. One battery, three very different missions.
16.0Speed, kn
250Power, kW
40Range, nm
2.5Hours under way
General Arrangement
Eighteen metres, every one working

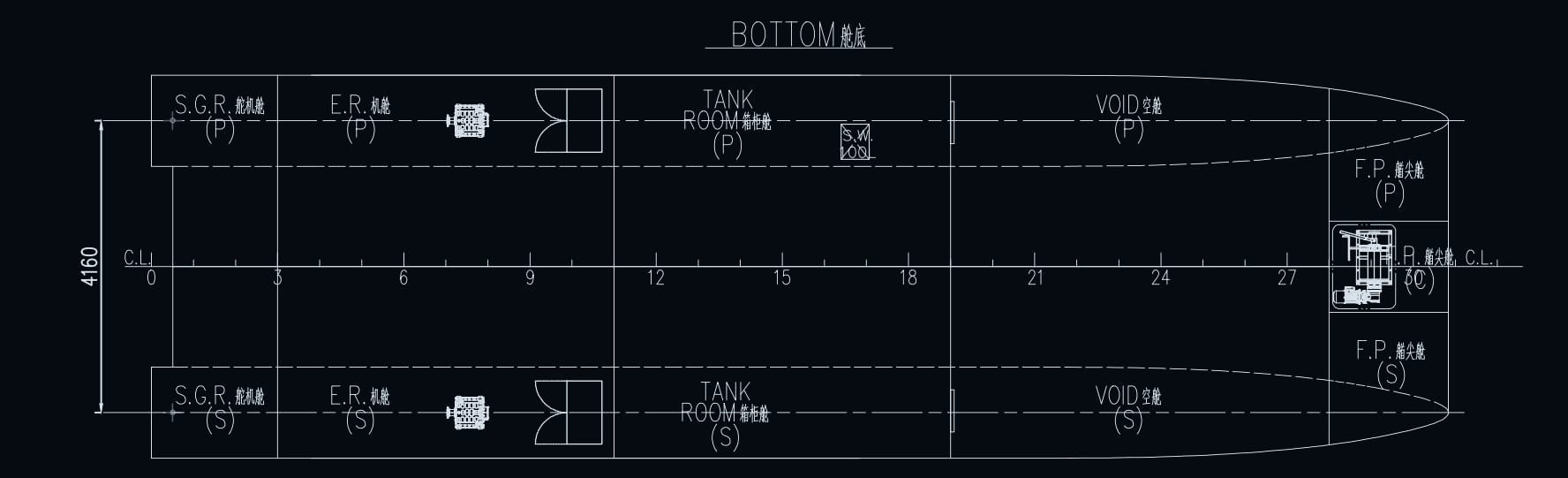

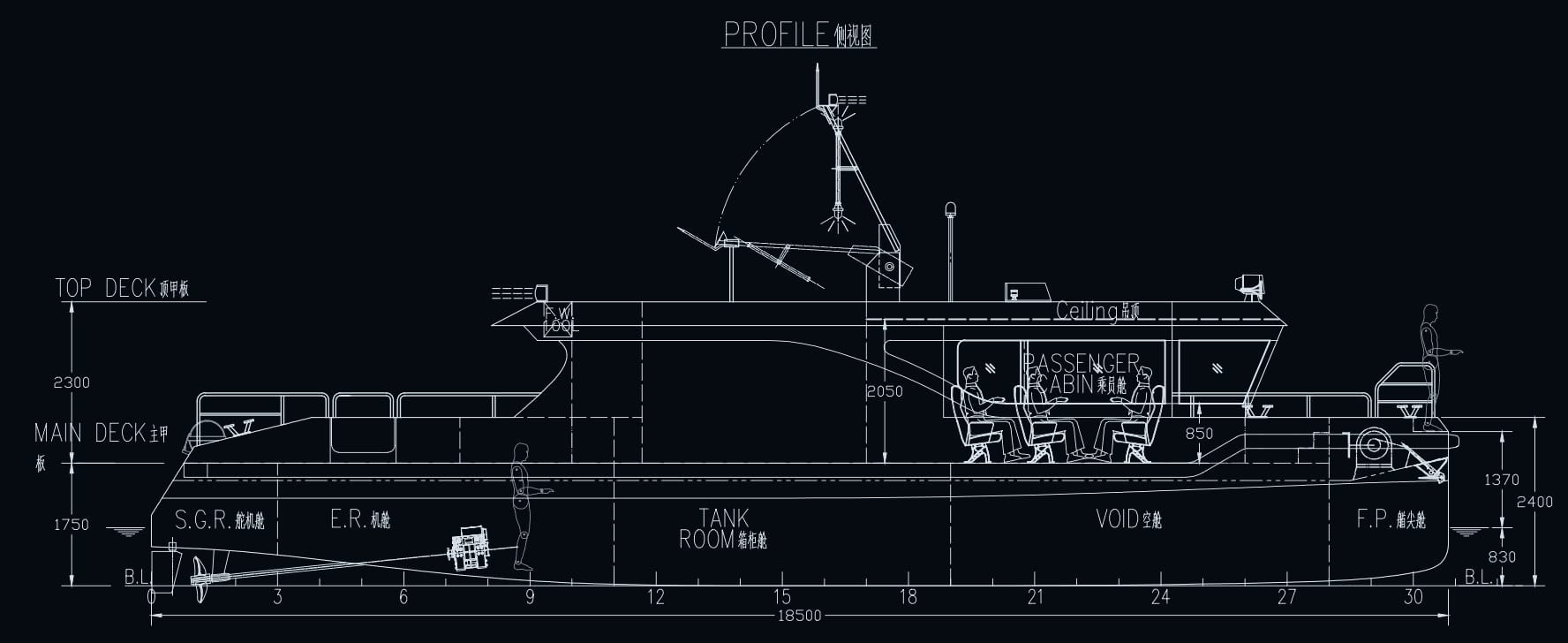

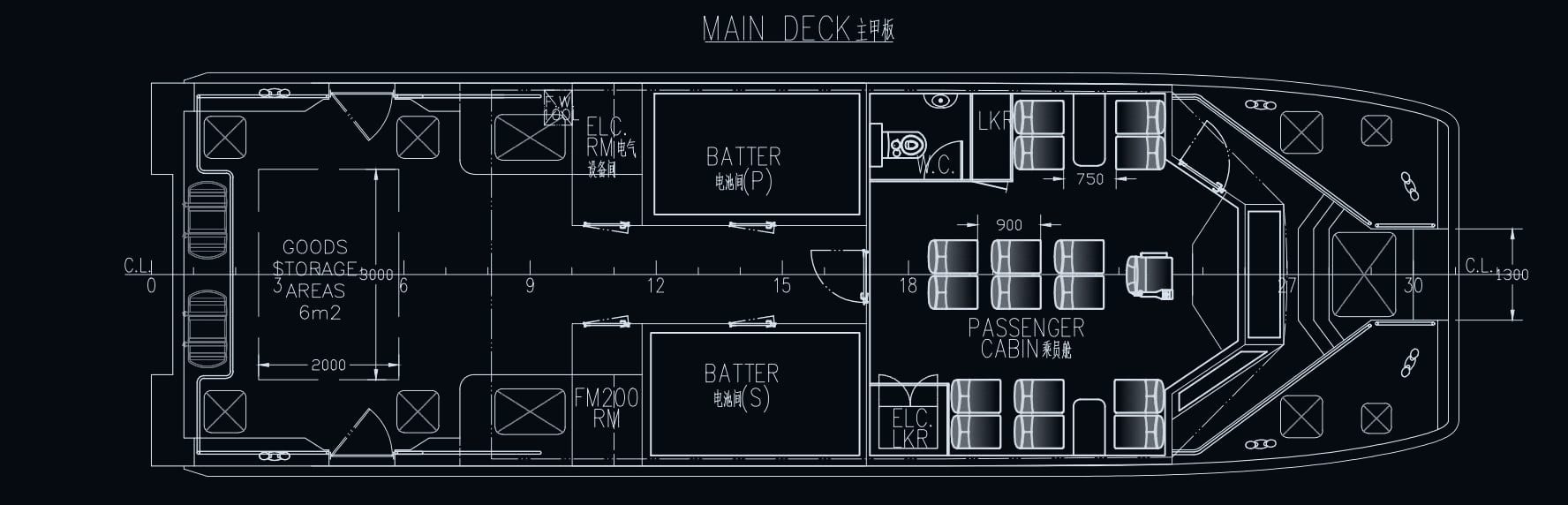

Forward cargo deck for two pallets (6 m², 2 t), twin battery rooms amidships, 12-seat passenger cabin with W.C. aft — central wheelhouse with all-round visibility.

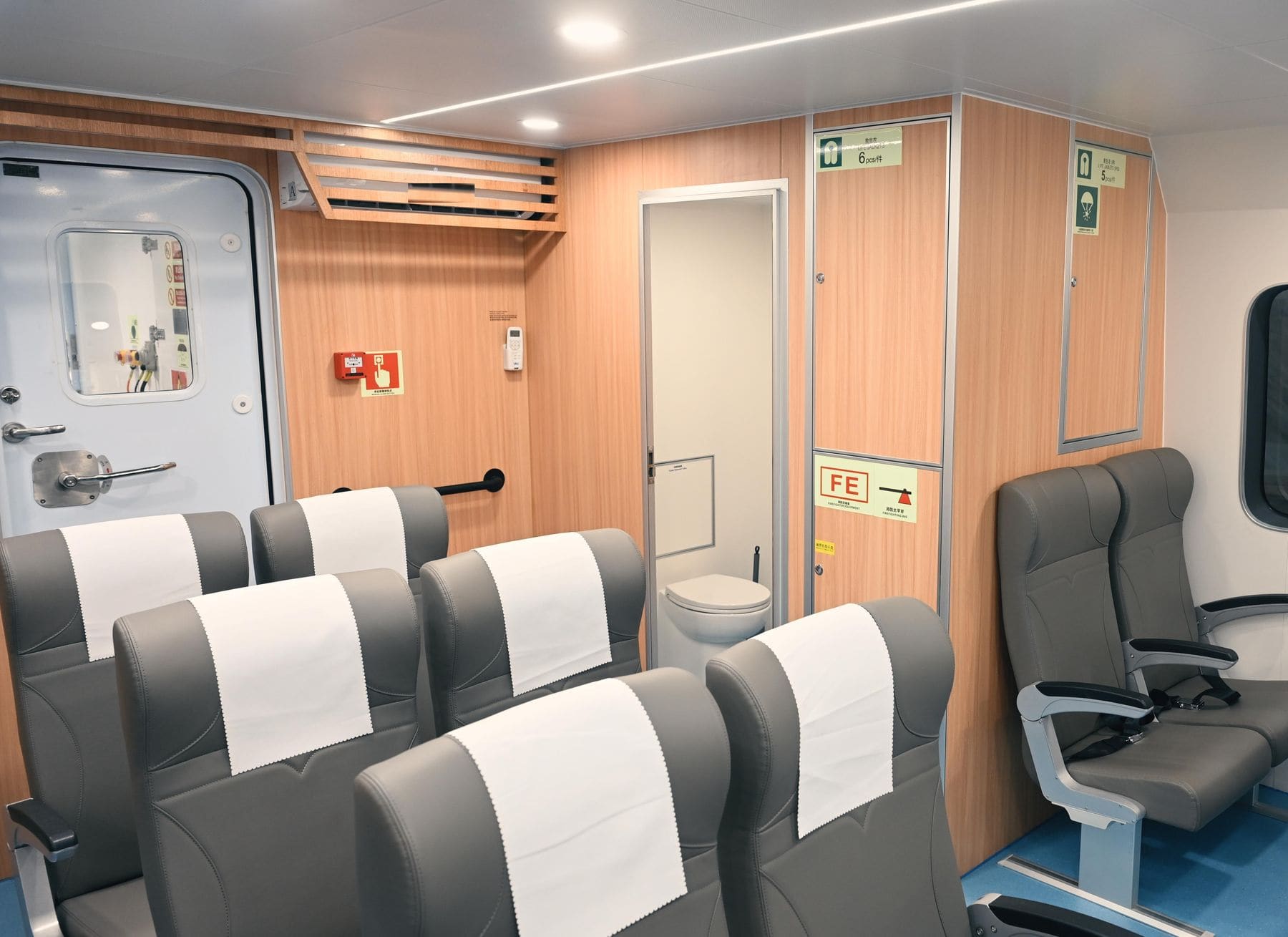

On Board
A working cabin, finished like a lounge

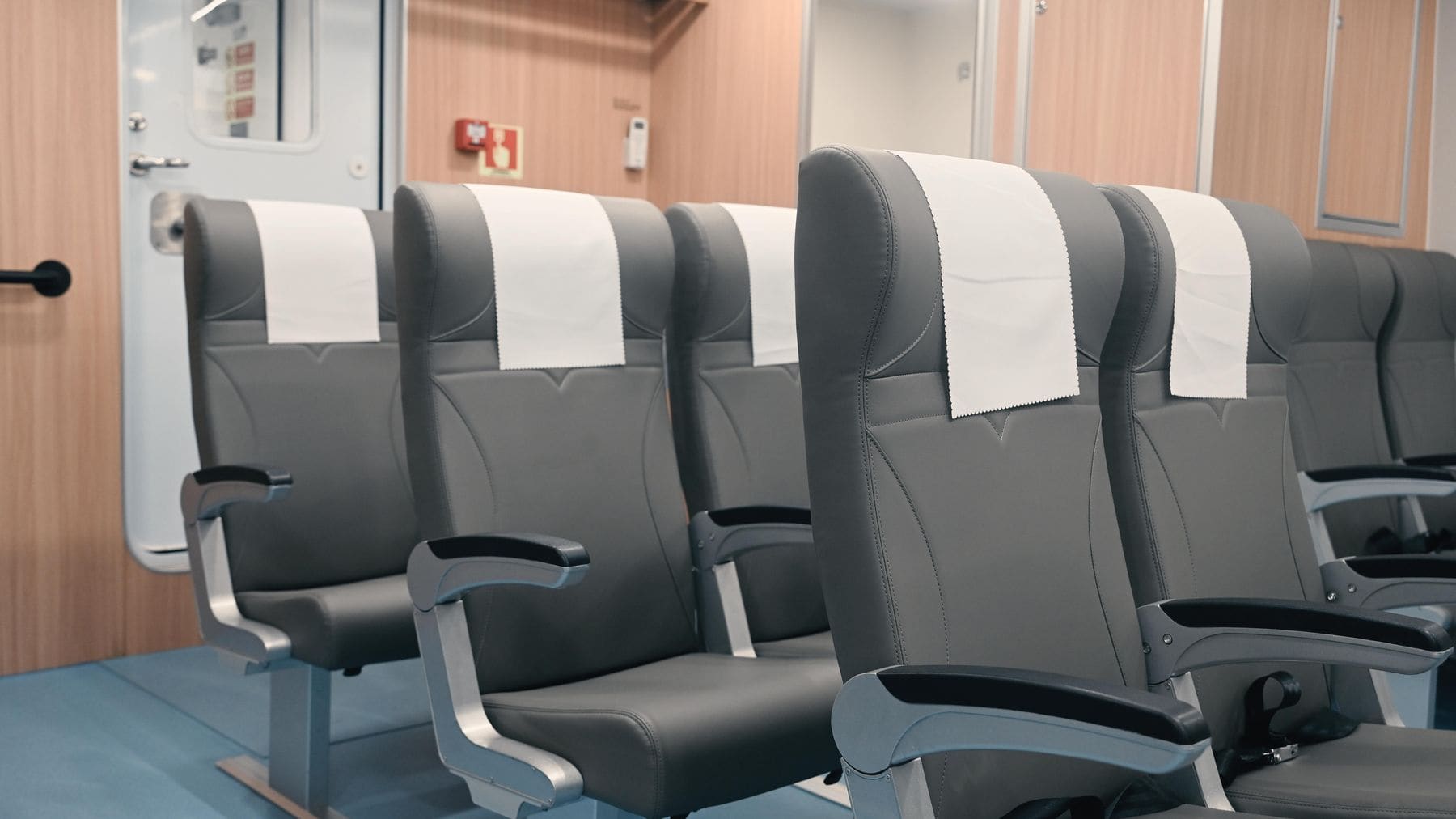

Twelve high-back seats with lifejackets stowed beneath, tables for the paperwork, split air conditioning, a W.C. with electric toilet — everything a crew shift needs, nothing it doesn’t.
“Sixteen knots —
and you can still hear the gulls.”
The Platform
One hull, your mission
The delivered crew boat is one point in a family engineered on the same carbon catamaran platform. Tell us the route — we configure the boat.
E60 Crew
12 + 5 persons · 16 kn · 40–130 nm · 2 t deck cargo

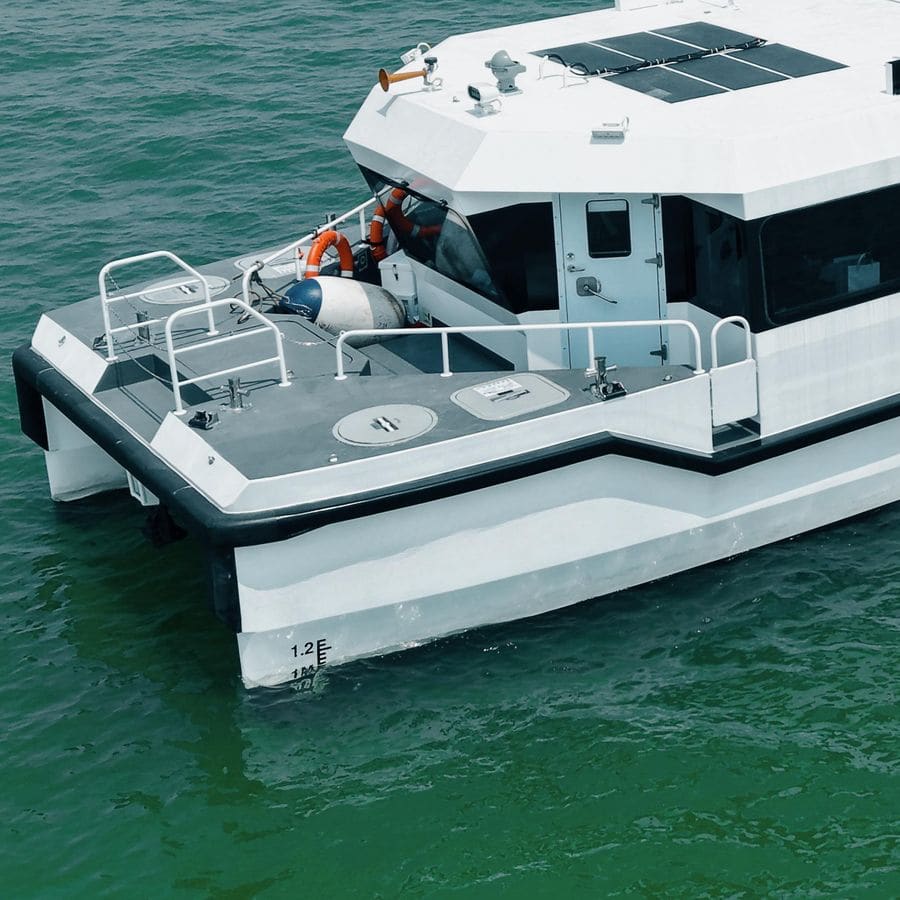

The proven baseline: CCS-classed electric traffic boat with 720 kWh pack, 2.7 h dual-gun charging and a fendered cargo bow.
E60 Ferry
26–29 passengers · ≥ 15 kn · 1 h fast charge (360 kW)
Liquid-cooled 1C battery, wider 5.66 m beam, crew berths with shower — the commuter-ferry layout on the same hull and mould.
E60 Cargo
15 t payload · 15–30 pallets · ≥ 12 kn · ~2,000 kWh
A 19.9 m waterline stretch with full-rotation contra-rotating thrusters and up to 900 kW charging — pallets in, emissions out.
Superstructure inset 150 mm from the deck edge for safe berthing alongside; embarkation port and starboard, fore and aft. Ferry and Cargo are engineering proposals, subject to class and final design.
Specifications
OBLUE E60 in detail
General & Dimensions
- Vessel type
- All-electric catamaran traffic boat
- Hull material
- Carbon fiber sandwich / vinylester
- Class
- CCS
- Class notation
- ★ CSA Traffic Boat (HSC), coastal service; ★ CSM Battery (power)
- Length overall
- 18.50 m
- Breadth
- 5.46 m
- Draft
- ≈ 0.9 m
- First delivery
- June 2026
Propulsion & Battery
- Main motors
- 2 × 125 kW (max 140 kW each), direct drive
- Propellers
- 2 × fixed-pitch (FPP)
- Rudders
- 2 × 316L stainless steel
- Battery
- ~720 kWh LFP (CALB), 4 clusters @ 563 V
- Charging
- 2 × 120 kW DC, dual CCS2 guns — 2.7 h
- Shore power
- AC 230 V / 50 Hz / 32 A
- Solar
- Rooftop array — lighting & UPS loads
Performance & Capacity
- Service speed
- ≥ 16 knots
- Endurance
- ~40 nm @ 16 kn · ~81 nm @ 10 kn · ~130 nm @ 7 kn
- Passengers / crew
- 12 / 5
- Cargo
- 2,000 kg — two pallet stations, 6 m²
- Fresh / sewage water
- 100 L / 100 L
Navigation & Monitoring
- Nav & comms
- VHF radio, internal comms, wheelhouse fire alarm
- Monitoring
- 12-inch bridge display; explosion-proof gas, temperature and liquid-level sensors
- Remote
- One-key start; 4G remote operation & maintenance
- Fire suppression
- FM200 system; fire-retardant battery-space coating
Outfitting & Cabin
Deck & Outfitting
- Anchor windlass, forward centre
- 6 × double bollards
- 3 × weathertight doors
- Anti-slip weather deck
- Bow & stern fenders for pier heading
Cabin
- 12 passenger + 4 crew + 1 captain seats
- Under-seat lifejacket stowage
- 2 × cabin tables, storage room
- Split air conditioning
- W.C. — electric toilet & wash basin
Data reflect the first delivered vessel (2026); other configurations differ. Specifications are indicative and subject to final engineering, classification and owner customisation.
